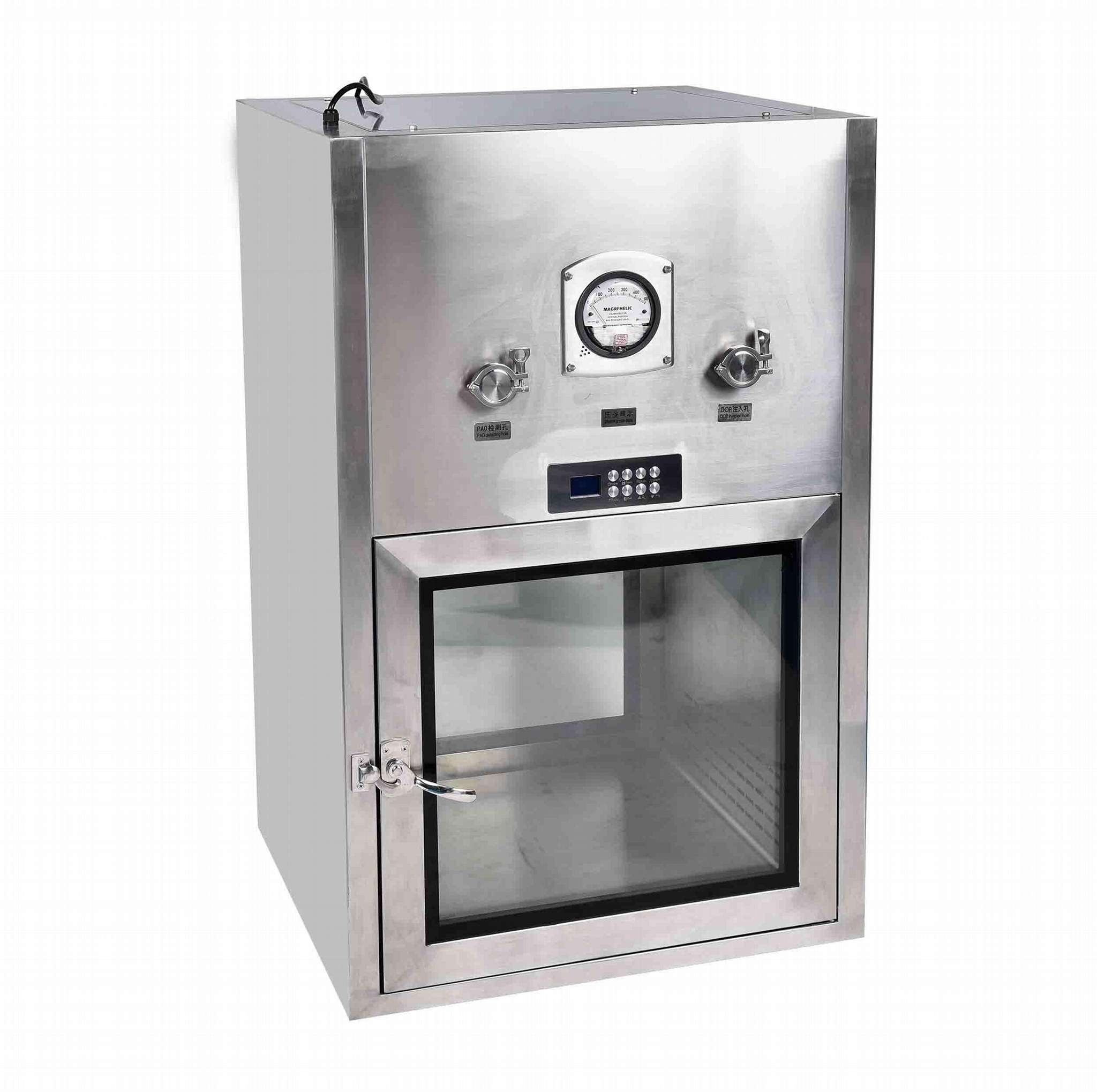

An air shower pass-through is a chamber installed on cleanroom walls, biological laboratory walls, or other clean equipment. It is primarily used for transferring materials between clean zones, or between clean and non-clean zones, minimizing the frequency of door openings to reduce contamination in the cleanroom to the lowest possible level.
When materials pass through, HEPA-filtered clean airflow quickly and effectively removes dust particles. The airflow is then recirculated into the air shower area after passing through primary and HEPA filters, making ESCO air shower pass-throughs superior to standard pass-throughs. The default air shower time is set at 12 seconds.
Features
1. Housing made of high-quality steel with powder coating, rust-proof and non-particle-shedding
2. Interior chamber of easy-to-clean stainless steel, smooth and flat for easy maintenance
3. Permanently lubricated direct-drive centrifugal fan
4. Equipped with bagless HEPA filters, with 99.999% filtration efficiency for 0.3-micron particles
5. Stainless steel nozzles provide high-velocity airflow for more effective particle removal
6. Low noise, operating at under 60 decibels
7. Electronic interlock system prevents cross-contamination of airflow between inside and outside
8. Special sealing strips ensure airtightness
9. Electronic interlock and reinforced structural design ensure safety
10. Easy installation and excellent cleanroom compatibility
Basic Specifications
Model | EQU/00-EAS-PB |
External Dimensions (L x W x H) mm | 1120 x 540 x 1500 |
Internal Dimensions (L x W x H) mm | 800 x 500 x 600 |
Air Changes | 1360/hour |
Airflow Velocity (m/s) | 22 m/s |
Number of Nozzles | 4 |
Basic Air Shower Time (s) | Factory set at 12s (adjustable) |
Filtration Efficiency | HEPA filter: 99.999% efficiency for 0.3-micron particles Primary filter: Dust holding capacity ≥ 90%, filtration efficiency 20% |
Filter Composition | HEPA filter Primary filter: Replaceable, non-washable polyester fiber |
Main Material | 1.5 mmt / 0.06" / 16-gauge galvanized steel with epoxy powder coating |
Power Supply | 220VAC 50 Hz |
Power Consumption | 0.30 kw |
Gross Weight (kg) | 274 |
Net Weight (kg) | 150 |
Packing Dimensions (L x W x H) mm | 1270 x 700 x 1650 |
* Custom non-standard air shower pass-throughs available upon request
Standard Configuration
1. Nozzles
2. Door
3. Handle
4. Stainless steel base
5. Light
6. Control buttons
7. Fan
8. HEPA filter
9. Primary filter
Optional Features/Accessories
1. ULPA filter
2. Tempered glass door
3. Conveyor belt system
4. UV germicidal lamp
